Log Max 10000XT

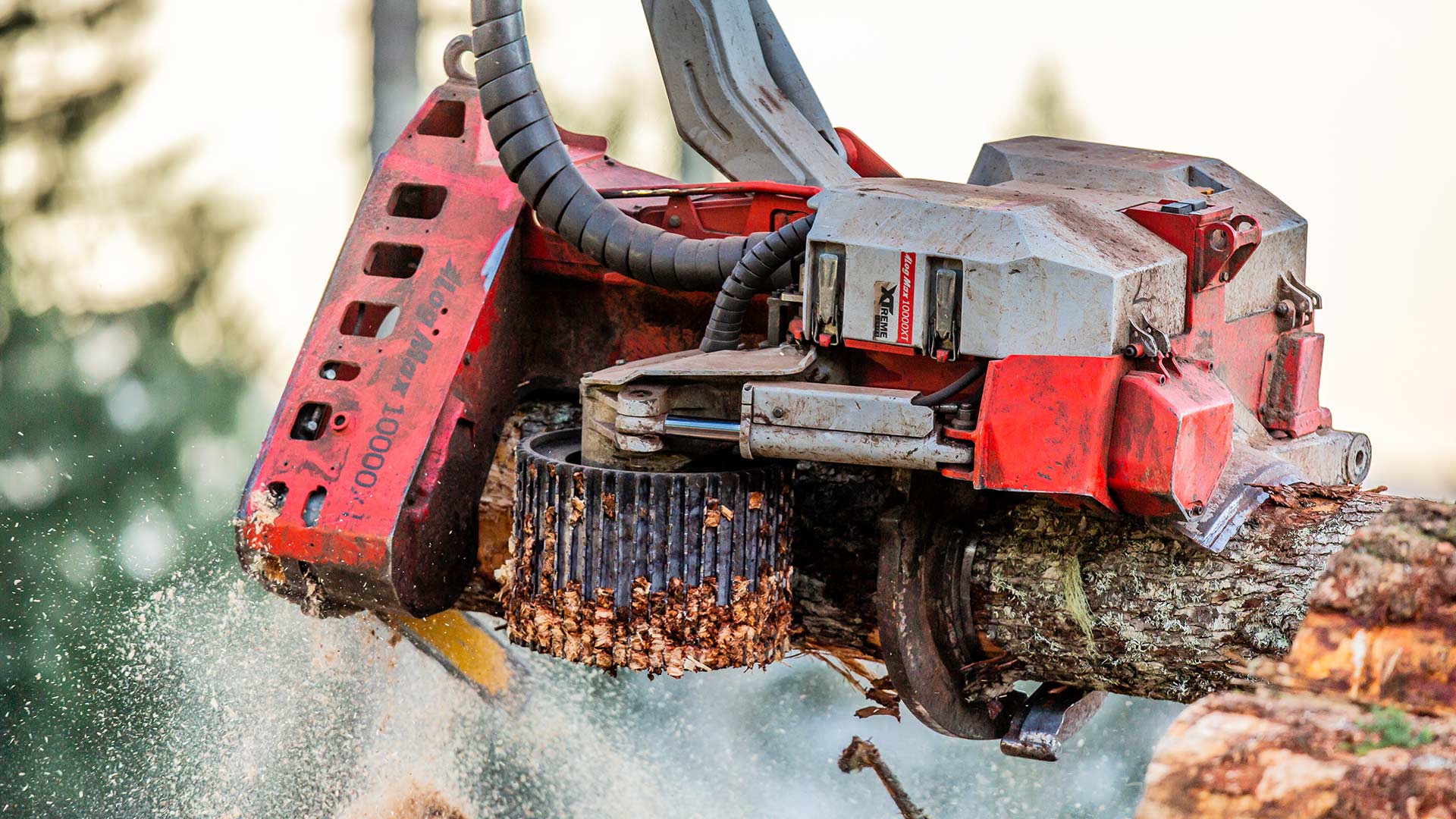

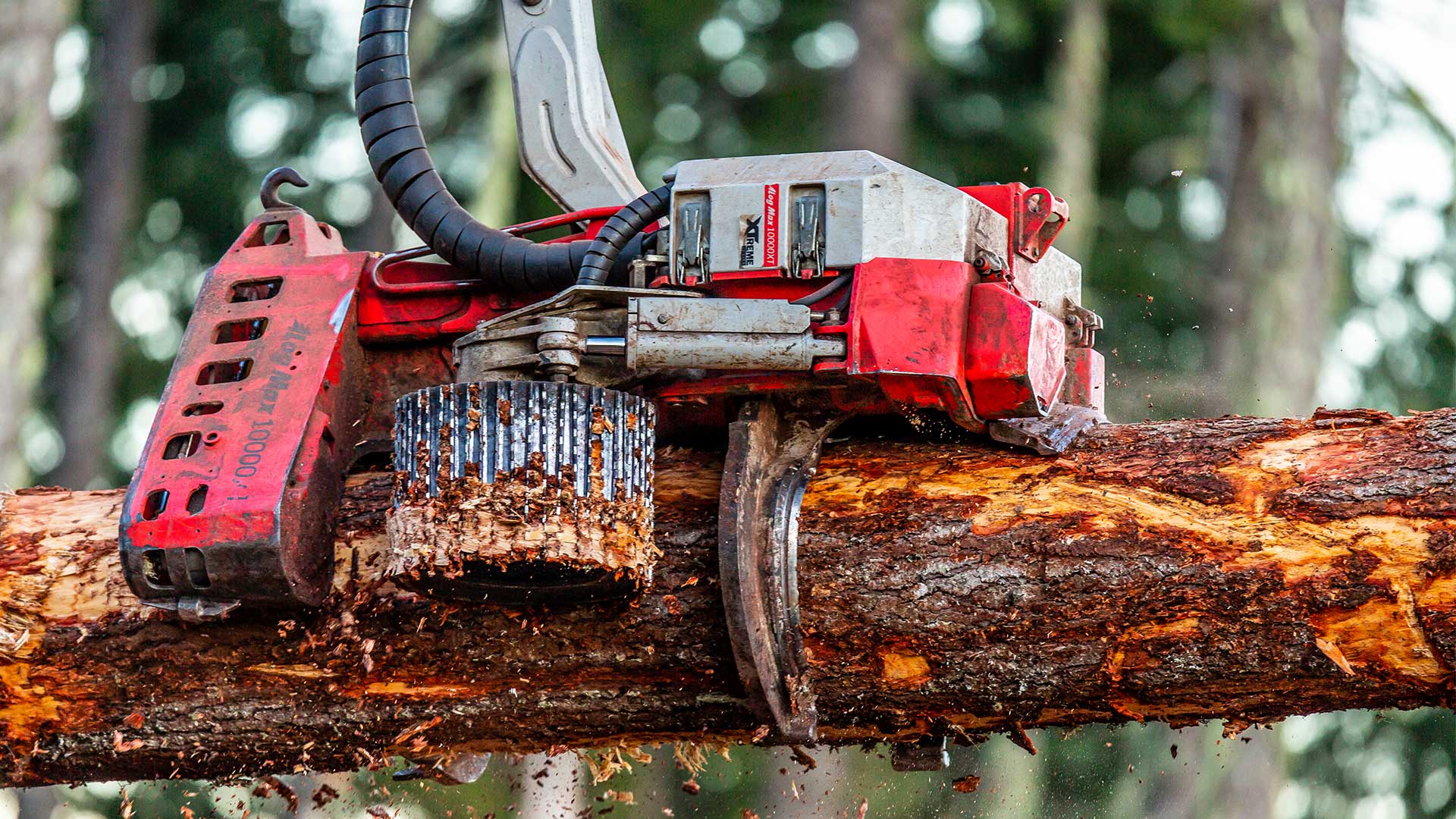

With incredible drive power and precision delimbing quality the Log Max 10000XT is a highly productive harvesting head. Whether you’re working at a landing, or felling and processing at the stump.



Developed specifically for tracked carriers, with a choice of harvester or dedicated processor, the 10000XT cuts wood up to 900 mm (35.4’’) in diameter and both versions feature an integrated top saw. The Log Max XTreme series is designed to meet the demands of the toughest operations.



The XTreme Series has been developed to provide the logging industry with a productive and durable head for the most extreme applications and to produce wood at the lowest cost per tonne possible.


Harvesting key figures

  • Most productive range : 18 to 58 cm
  • Maximum cutting diameter : 90 cm
  • Minimum delimbing diameter : 5,5 cm
  • carrierscarriers
  • 28-38 tons200-300 kNm
  • cut stump

DIMENSIONS & WEIGHT

  • Max width arms open 2073 mm
  • Min width with arms closed 1386 mm
  • Height (to felling link, incl. top saw) 2339 mm
  • Standard configuration1 2838 kg
  • 1) Incl: V-Steel Aggressive rollers

FELLING/CUTTING - SAW TYPE

Hydraulically driven chain saw with pressure controlled feed force.
Chain oil tank in frame with 36 liters capacity.

  • Saw type 411XL
  • Saw motor 60 cc
  • Saw chain 0.404 pitch
  • Bar length, std/opt 91/101.5 cm
  • Maximum cut capacity, std/opt 81/90 cm

  • Saw type (optional) 418
  • Saw motor 30 cc
  • Saw chain 3/4"-9Z
  • Bar length, std/opt 82/90 cm
  • Maximum cut capacity, std/opt 72.5/80 cm
  • Saw type (optional) 518
  • Saw motor 30 cc
  • Saw chain 0.404 pitch
  • Bar length, std/opt 82/90 cm
  • Maximum cut capacity, std/opt 72.5/80 cm
  • Automatic tensioning

  • Top Saw 98XL 19 cc
  • Bar length 67 cm
  • Maximum cut capacity 53 cm

FEEDING

Two hydraulically driven rollers mounted directly on radial piston type motors, 1,404 cc

  • Feed roller diameter, V-Steel 618 mm
  • Feed roller diameter, V-Steel Aggressive 630 mm
  • Calculated feed force145.8 kN
  • Calculated feed speed2 4.2 m/sec
  • Maximum roller opening 813 mm
  • Minimum roller opening 7 mm
  • 1) calculated at 320 bar pressure
  • 2) calculated at 380 l/min flow

DELIMBING

Five movable knives with patented positioning to minimize friction losses, which increases the active pulling force.

  • Max delimbing knife opening 890 mm
  • Max full coverage delimbimg diameter1 580 mm
  • Min full coverage delimbing diameter 55 mm
  • 1) Note includes bottom knife

HYDRAULICS

  • Maximum pressure 320 bar
  • Maximum flow 380 l/min
Min. requirements for acceptable performance :
  • Flow 300 l/min

CONTROL SYSTEM

Log Mate 500 with diameter and length measuring: Full system diagnosis, value bucking, StanForD 2010, multi-stemming report, powerful production reporting...
Read more »

Interfaces : Log Max heads can be seamlessly installed on any machine running an other control system. These powerful and easy to implement interfaces are available for all major manufacturers. (John Deere, Rottne, Komatsu...)
Read more »

ROTATOR

  • Rotobec RT 500-1 with 360° rotation
  • Robobec RT 500 without 360° rotation (Harvester)
  • Rotator Pierce (Processor)

FEED ROLLERS

v-steel rollers

V-Steel

By placing the stud bars in angled rows, Log Max has obtained a self cleaning feed roller with very high pulling force both in forward and reverse, without risk of spinning.

v-steel aggr. rollers

V-Steel Aggressive

The V-steel Aggressive roller has studs that sink deeper in the tree trunk.

OPTIONAL 60CC CHAINSAW

  • supercut

All new 411XL - 60CC

The 60CC is a powerful and adaptable saw unit that combines low weight with high cutting performance.

EXTRA EQUIPMENTS

  • Filed repair kit
  • Rotator link without swing damper
  • Hose holder
  • Find end sensor
  • Built-in rotator valve
  • Rotator – Pierce (Processor)
